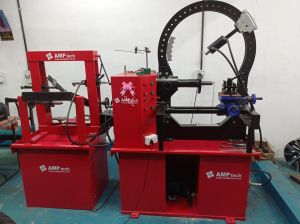

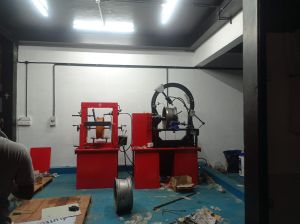

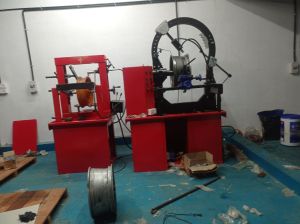

Alloy Wheel Rim Straightening Machine

4.50 Lac / 1 Piece

1 Piece (MOQ)

Business Type Manufacturer, Exporter, Supplier, Retailer, Trader, Distributor, Importer
Brand Name AMP Tech
Country of Origin India
Voltage 220-380 V
Click to view more

Preferred Buyer From

Location Worldwide

Product Details

Driven Type
Pneumatic
Color
RED
Condition
New
Automatic Grade
Semi Automatic, Manual
Power
9-12kw
Motor Power
0.75 HP
Length
1200 mm
Width
800 mm
Speed
900-1400 rpm
Gross Weight
350 kg
Height
1350 mm
Power Consumption
0.55 kW
Current
7.3-8.7 A
  Specifications
Power consumption 0.55kw
Motor 0.75Hp
Height 1350mm
Length 1200mm
Width 800mm
Gross Weight 350kg

MOTOR SPECIFICATIONS
  • Mechanic Motor - 0.55kw, 1400rpm, 0.75Hp-7.3 Ampere,
  • 3 phase - single phase/380V - 220V
  • Hydraulic Motor-0.55 kw 900rpm, 0.75Hp, 8.7 Ampere,
  • 3 Phase-single phase//380V - 220V
  • Sound Level - 45db
HYDRAULIC PISTON POWER
  • Total Pressure = πr2 x 160(Working Pressure bar)
  • Total Pressure = 3.14 * (3.15 * 3.15) = 31.156kg
  • Total Pressure = 31.156 * 160 = 4984.96kg
  • Diameter of piston cylinder we used is 63mm which comes to as radius 3.15c
